schuett phoenix II
Safety Bunsen Burner for lab tasks such as sterilizing, heating or scarfing.
Unique comfortable Bunsen Burner with outstanding quality features:
l Easy-to-read highlighted colour display
l Multilingual menu navigation in most international languages
l Information and warning remarks in written form
l Self-explanatory operation
l Unique joystick navigation
l Gas and air adjustment with “Click-Stop”-feature
l Comfortable operation optionally by hand, foot-switch or motion sensor mode
Ideal for use in microbiological safety cabinets or in the chemical laboratory.
Housing made of polished stainless steel and safety glass. UV- and solvent resistant, flame-sterilizable, easy to clean.
Suitable for use with natural gas (central gas supply in the lab) or propane/butane gas (mobile with gas cartridges/bottles).
Easiest exchange of burner head, no need for tools.
schuett phoenix II with highest safety standard
(certified according to DIN 30665 part 1, DIN-DVGW Reg.NG-2211AR0750):
l Controlled burn-time 1 sec … 120 min (adjustable)
l Burn-time displayed in all modes of operation
l Automated safety shutdown if not in use
l Sensor activation 1x/2x
l Overheating protection/burner control by sensors,
l e.g. temperature of the burner head (Warning remark in the display)
l Exact economic flame adjustment
l Stable flame, even at strong currents
l Flame and ignition monitoring
l Tilting to the right or to the left side.
3 models available:
schuett phoenix II eco
(without display/sensor, with foot-switch)
Start/stop flame by foot-switch or press button by hand (ON/OFF).
Low-cost model, best suited for microbiological safety cabinets.
schuett phoenix II standard
(colour display, language selection, sensor and foot- switch)
Start/Stop flame by activating sensor 1x/2x, use foot switch or press button by hand (ON/OFF). Burn-time displayed.
schuett phoenix II accu
(colour display, language selection, sensor and built-in high-power battery)
Start/stop flame by activating sensor 1x/2x, use foot-switch or press button by hand (ON/OFF). Burn-time and battery status displayed. Built-in high-power battery for up to 30 hours operating time. With high-speed battery charger incl. overcharge protection. Ideal for mobile operation.
____________________________________________________________________________
Technical Details
Dimensions (WxDxH): 125x160x85
Power: 100-240 V, 50/60 Hz
Weight approx. 1000 g
___________________________________________________________________________
Ordering Information
| Type |
Photo |
|
|
schuett phoenix II eco
Safety Bunsen Burner
with foot-switch
|
1 |
|
|
schuett phoenix II standard
Safety Bunsen Burner
with sensor and foot-switch
|
1 |
3.355 202
|
|
schuett phoenix II accu
Safety Bunsen Burner
with sensor, integrated
high-power battery
(foot-switch optional)
|
1 |
|
|
Gas-safety hoses for
|
natural gas
0.75 m / 1.5 m / 2.0 m |
- |
3.359 212 3.359 222 3.359 232
|
|
with threaded screw connections
for propane/butane
0.5 m / 2.0 m
|
- |
|
|
natural gas with connection 1/2“
for gas-outlet (TAE)
1.0 m / 2.0 m
|
- |
|
| Adapter incl. pressure reducer for the connection of |
| gas cartridges CV 360 |
2 |
3.357 212
|
|
gas cartridges Express 444
|
- |
3.357 362
|
Adapter incl. pressure reducer and gas-safety hose
(0.5 m) for the connection of |
| gas cartridges C 206 |
3 |
3.357 232
|
| gas cartridges CV 270/300/470 |
9 |
3.357 252
|
| gas cartridges CP 250 |
9 |
3.357 302
|
| gas cartridges CG 1750 |
9 |
3.357 322
|
| gas cartridges CG901/904/907 |
9 |
3.357 342
|
Cartridges
EG Safety Data Sheet, as per regulation (EG) no. 1907/2006: GGVSEB 2/5 F, UN 2037, LQ 2 (ADR/RID) |
|
CV 360 with valve
52 g/cartridge butane gas (qty=6)
|
2 |
3.351 322
|
|
C 206 without valve (pierceable)
190 g/cartridge butane gas (qty =6)
|
3 |
3.351 332
|
|
CV 470 with valve
450 g/cartridge butane gas (qty =3)
|
9 |
3.351 342
|
|
CG 1750 with screw-valve
175 g/cartridge propane/butane gas (qty =6)
|
9 |
3.351 352
|
|
CP 250 with valve
250 g/cartridge butane gas (qty =6)
|
9 |
3.351 362
|
|
CV 270 with valve
230 g/cartridge propane/butane gas (qty =6)
|
9 |
3.351 372
|
|
CV 300 with valve
240 g/cartridge propane/butane gas (qty =6)
|
9 |
3.351 392
|
|
Express 444 with valve
60 g/cartridge propane/butane gas (qty =6)
|
- |
3.351 382
|
| Optional accessory |
Foot-switch, stainless steel
3500 mm cable length |
- |
3.358 392
|
| Glass spatter guard |
4 |
3.358 332
|
| Flame shield, stainless steel |
5 |
3.358 342
|
|
Instrument tray, stainless steel
|
7 |
3.358 352
|
|

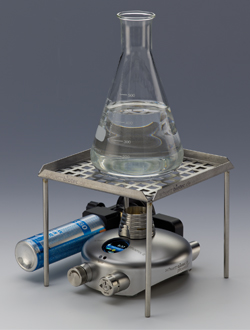

Hot-Tray, stainless steel
height-optimized 160x140x160 mm
|
6 |
3.358 362
|
|
Pressure reduction valve for the connection of 5 or 11 kg
propane gas bottles
(TÜV-certified, indoor/outdoor)
|
- |
3.358 302
|
| Burner head (standard) |
- |
3.935 700
|
| Burner head (long) |
- |
3.935 710
|
Other lengths of tubes on special request.
