For the cultivation of anaerobic and microaerophilic microorganisms in a defined, rapidly generated and optimum gas atmosphere.
Anaerobic methods:
1. Evacuating (with vacuum pump) and filling with gas (e.g. nitrogen)
without chemical accessories.
2. Chemical anaerobic systems (GasPacks), available as accessories.
Jars:
l break-proof and non-ageing
l made of robust stainless steel or transparent polycarbonate
Lids:
l UV-resistant plastic or transparent PC
l with two corner valves incl. tube clips for flushing and vacuum hoses (5 mm inner-Ø)*
l with manometer for exact control of the vacuum or over pressure (-1 to 0.2 bar)*
On request, the lids are available as custom-made versions, e.g. made of other material, without valves/manometer or equipped with high-temperature manometer.
Racks (optional): For Petri dishes, multiwell plates or test tubes. Equipped with holder for anaerobic systems.
*except type "eco"
_______________________________________________________________________________
Ordering Information
| Type |
Liters
|
Inner-Ø
mm
|
Inner height
mm
|
Cat.-No.
|

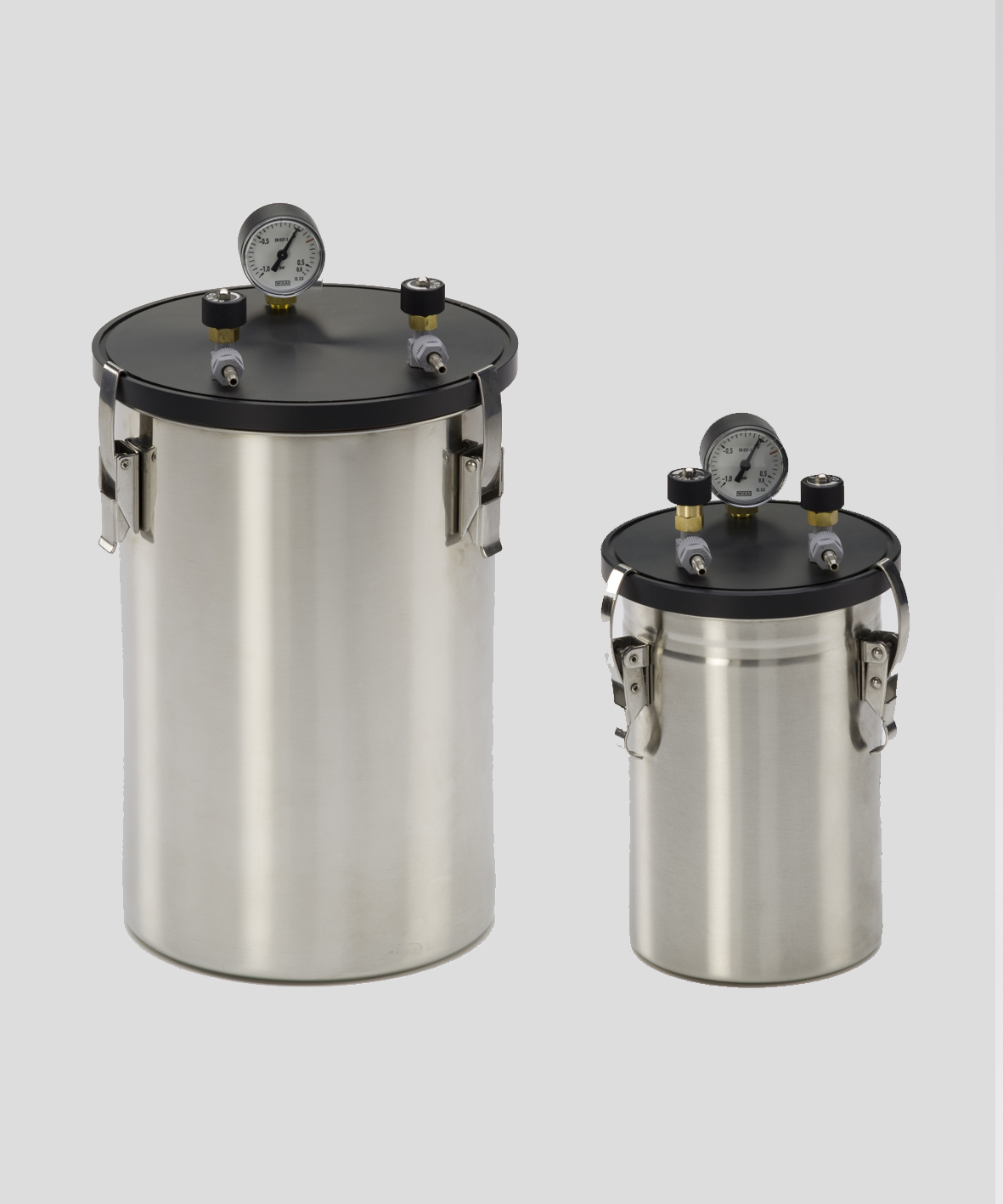

Anaerobic jar "large"
for up to 15 Petri dishes Ø 60-150 mm
Jar: Stainless steel; Lid: Plastic
2 valves, 1 manometer |
6
|
175
|
260
|
3.380 102
|
Anaerobic jar "small"
for up to 10 Petri dishes Ø 60-100 mm
Jar: Stainless steel; Lid: Plastic
2 valves, 1 manometer |
2
|
120
|
170
|
3.380 202
|

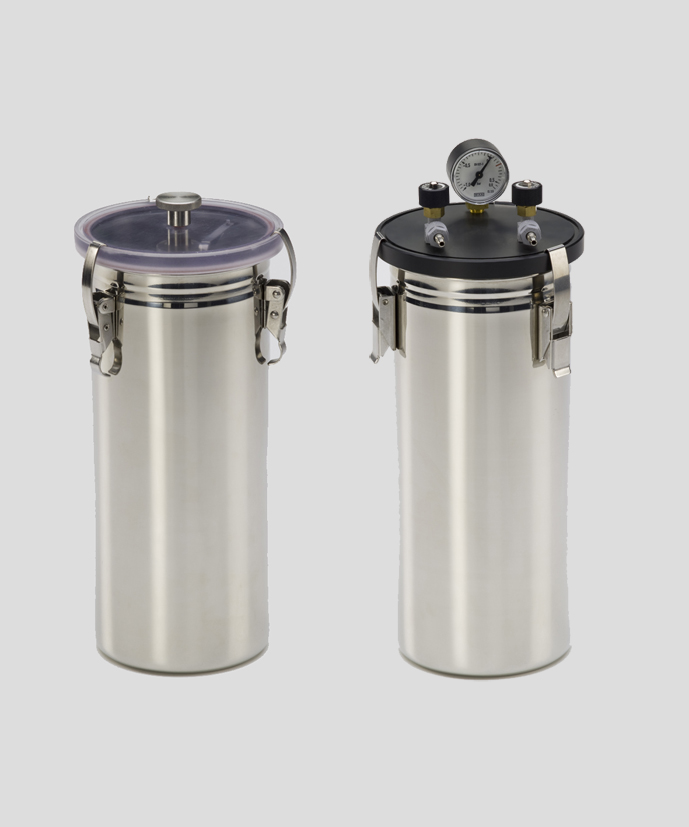

Anaerobic jar "standard"
for up to 15 Petri dishes Ø 60-100 mm
Jar: Stainless steel; Lid: Plastic
2 valves, 1 manometer |
3
|
120
|
270
|
3.380 302
|
Anaerobic jar "eco"
for up to 15 Petri dishes Ø 60-100 mm
Jar: Stainless steel; Lid: Polycarbonate
Ventilation screw |
3
|
120
|
270
|
3.380 502
|

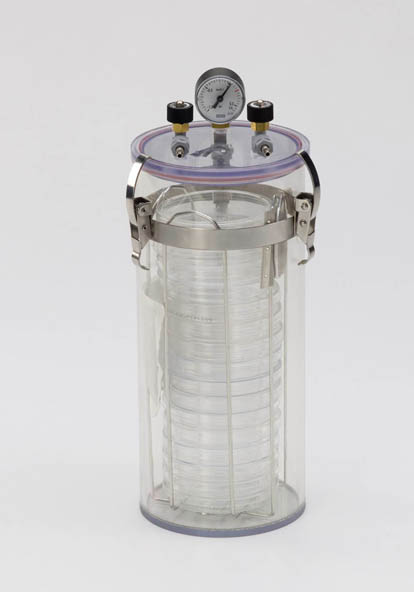

Anaerobic jar "crystal"
for up to 15 Petri dishes Ø 60-100 mm
Jar: Polycarbonate; Lid: Polycarbonate
2 valves, 1 manometer |
3
|
120
|
270
|
3.380 902
|
| Accessories |
Petri dish rack "small"
for up to 10 Petri dishes Ø 60-100 mm |
|
|
|
3.385 102
|
Petri dish rack "standard"
for up to 15 Petri dishes Ø 60-100 mm |
|
|
|
3.385 202
|
Petri dish rack "150"
for up to 15 Petri dishes Ø 150 mm |
|
|
|
3.385 302
|
Petri dish rack "3x60"
for up to 45 Petri dishes Ø 60 mm |
|
|
|
3.385 402
|
Petri dish rack "micro"
for multiwell plates |
|
|
|
3.385 502
|
Test tube rack "test tubes"
for 9 test tubes Ø 18 mm |
|
|
|
3.385 602
|
| Anaerobic systems |
| GasPack-Kit "anaerobic" (qty=10) |
|
|
|
3.880 300
|
| GasPack-Kit "CO2" (qty=10) |
|
|
|
3.880 400
|
| GasPack-Kit "microaerophil" (qty=10) |
|
|
|
3.880 500
|
| Anaerobios indicator, test strip (qty=100) |
|
|
|
3.880 600
|
| Safety-Catalyst-Set, bag (qty=5) |
|
|
|
3.880 700
|
|
|
